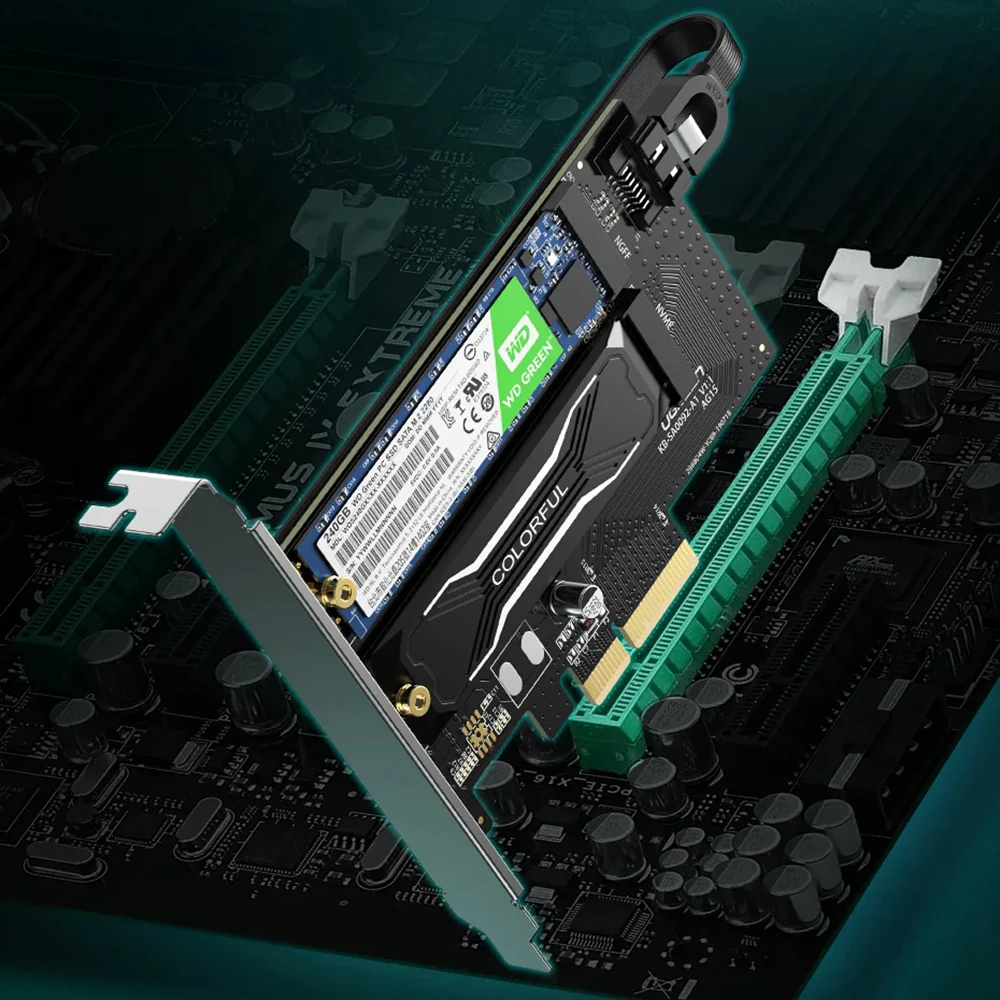

UGREEN CM302 SSD Interface Adapter (70504), NVMe M.2 / SATA - PCIe 3.0 X4

Suitable for a wide range of modern disks

Supports both NVMe SSDs (M-Key) and SATA M.2 SSDs (B-Key or B+M) in multiple formats (2230/2242/2260/2280).

High performance

The PCIe 3.0 x4 interface offers transfer speeds of up to 32Gbps for NVMe SSDs and up to 6Gbps for SATA SSDs.

Specifications:

Input: M.2 M-Key, M.2 B-Key;

Output: PCI-E 3.0 X 4, 7-pin SATA;

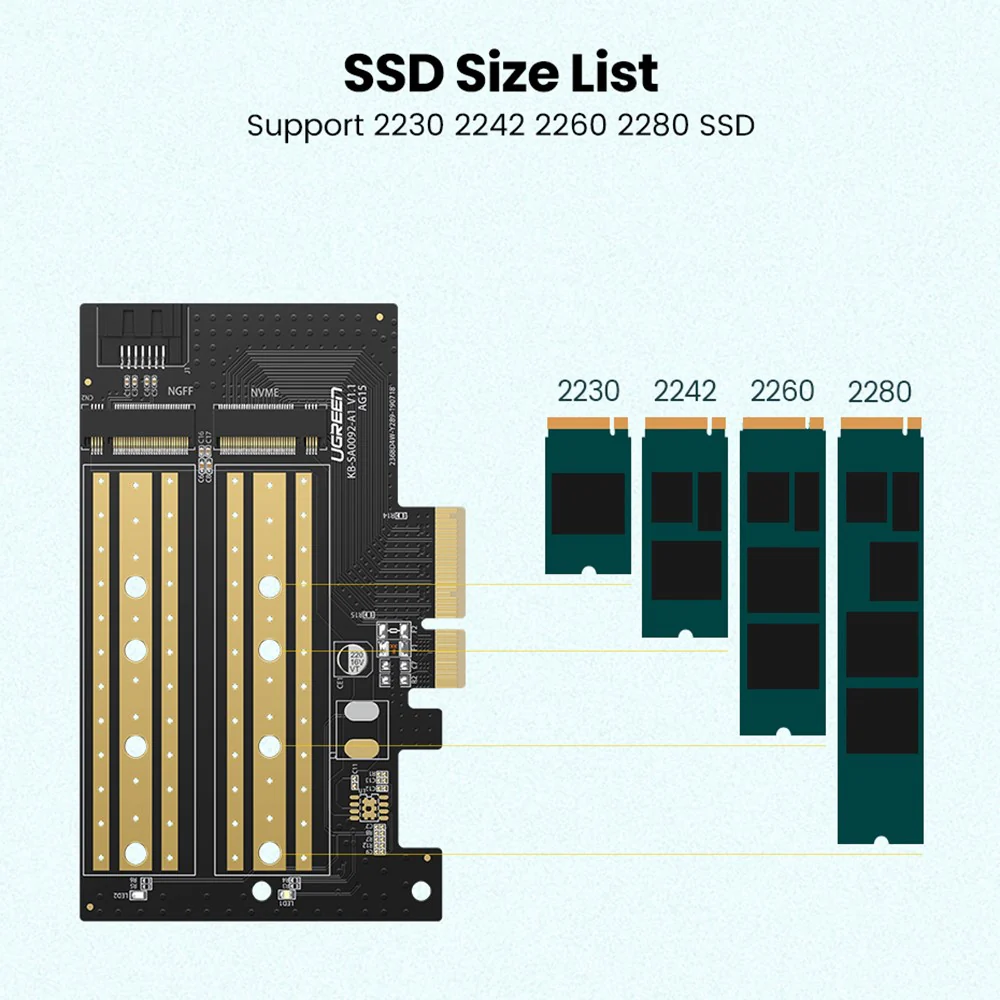

SSD Specifications: 2230 / 2242 / 2260 / 2280 M.2 SSD (NVMe/SATA);

PCI-E data transfer: up to 32Gbps;

SATA data transfer: up to 6Gbps;

Compatibility: Windows/Linux;

PCB dimensions: 116.8 x 74mm;

Deflector panel length: 119mm.
